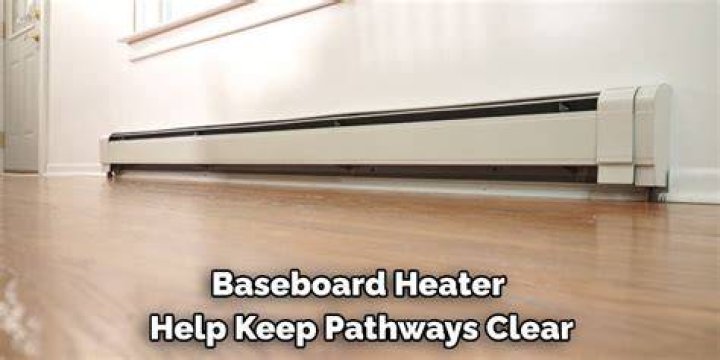

In most all cases, multiple baseboard heaters can be connected together if the total operational amperage does not exceed the wires and circuit breaker’s capacity. If the heater is too large it must be wired on a separate circuit.
How do you wire a series of baseboard heaters?
Connecting the heaters in series means that one of the wires from the power source (the thermostat) goes on one end of the first heater, the other end of that first heater is connected to one end of the second heater, and the last end is connected back to the power source. The whole thing forms a loop.
How many baseboard heaters can be on a 15 amp circuit?
Currently there are 3 baseboard heaters (750, 1000 and 1500) 3250 watts total running on 2 tied 15 amp breakers. So a 240-volt circuit running on a 20-amp, double-pole breaker, can have any combination of heaters up to 3,840 watts.
How many baseboard heaters do I need per room?
As a rule of thumb, assume a room requires 10 watts of electric heating per square foot of room. In other words, a 10 x 10 room (100 square feet) will require 1000 watts of electric baseboard heating.
Can a 240v baseboard heater run on 120v?
Installing a 240-volt heater on a 120-volt circuit is not as big a safety risk, but you will notice that your heater will fail to work most times. When it does run, it will end up giving out much less heat than what you needed for your room and below what you expected.
Do baseboard heaters need their own circuit?
240-volt baseboard heaters are in need of a dedicated circuit to supply enough power for proper functionality. The general rule of thumb is that baseboard heaters need a 20-amp circuit that requires a 12-gauge wire for either type heater. They should still be plugged into a 20-amp circuit.
Does a baseboard heater need a dedicated circuit?
Circuitry. 240-volt baseboard heaters are in need of a dedicated circuit to supply enough power for proper functionality. The general rule of thumb is that baseboard heaters need a 20-amp circuit that requires a 12-gauge wire for either type heater.
How many 240V baseboard heaters can I put on one circuit?
So a 240-volt circuit running on a 20-amp, double-pole breaker, can have any combination of heaters up to 3,840 watts. For example, using just one thermostat, you can install: Two 1,500 watt heaters, or. Three 1,000 watt heaters, or.
How do you wire multiple baseboard heaters together?
Also, How do you wire multiple baseboard heaters? Connect the two wires bringing power from the breaker panel to the two “Line” terminals. Connect the two wires carrying the power to the baseboard heaters to the two “Load” terminals on the thermostat. Connect the two bare ground wires together using a wire nut.
How do you hook up a baseboard thermostat?
Connect the two wires bringing power from the breaker panel to the two “Line” terminals. Connect the two wires carrying the power to the baseboard heaters to the two “Load” terminals on the thermostat. Connect the two bare ground wires together using a wire nut. Install the thermostat in its box.
Where is the best place to install a baseboard heater?
It should never be located above a heater or other heat source, or in a dead air space such as behind a door. Trace a switch box on the wall at 60 inches (152.4 cm) up from the floor for the thermostat where there are no framing members, etc. Cut the wall open with knife or hand saw.
How do you connect a Romex to a baseboard heater?
Run the two-wire 10-gauge wire ROMEX® from the main panel box to the first of the baseboard heaters. Open one end of the baseboard heater using the screwdriver. There should be a label on one end that reads “wire connection” or “heater connection”.
