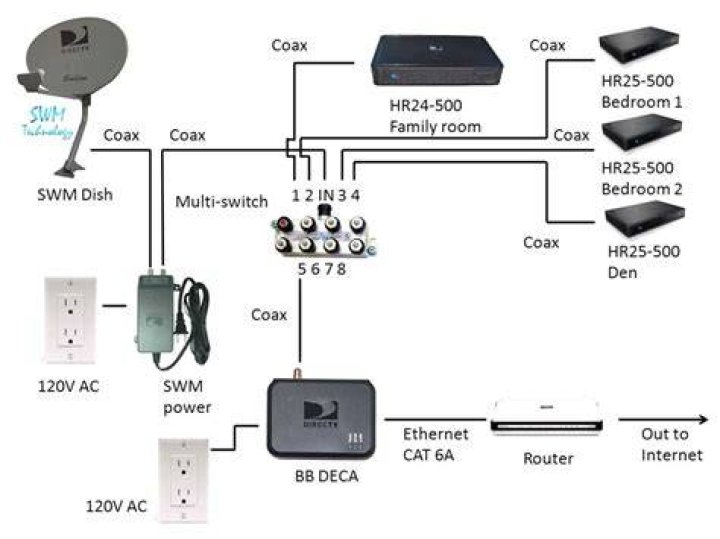

Secure the multiswitch in its place using a drill and screws if desired. Connect the two satellite feeds into the two input ports marked “Sat.” Connect your DirecTV receivers to the multiswitch. Connect as many RG-6 coaxial cables to the output ports on the multiswitch as needed.
Do I need a multiswitch for DirecTV?
A DirecTV system requires a multiswitch in certain circumstances. A multiswitch is used on a dual LNB satellite dish to add more than two receivers or to add a DVR and other receivers. It is also needed to include cable or antenna signals to your television, along with the DirecTV broadcast.
What does a satellite multi switch do?
Setup the Satellite Cable The Satellite Multi-Switch is used to combine a dual LNB signal from satellite dish and CATV/Antenna signal to support up to four satellite receivers. Connect the dual LNB cables from satellite dish to the correct LNB-A and LNB-B ports of the multi-switch.
How does a satellite LNB work?
How Does The LNB Work? When the dish collects the signal, the LNB amplifies it and downconverts existing frequencies into a lower block of intermediate ones. This process allows streaming the signal indoors through a coaxial cable instead of a waveguide line which usually costs a fortune and is very impractical.
What is SWM on DIRECTV setup?
The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The usual configurations allow 5, 8, 16, or 32 connections to a single satellite dish.
How does DIRECTV SWM system work?
DIRECTV’s SWM system allows one wire to each receiver no matter how many tuners. In a non-SWM system, the receiver makes a request to the dish or multswitch which provides that specific signal to the receiver. The receiver then tunes in that signal and finds the part that corresponds to ESPN.
How many DIRECTV receivers can I have on one dish?
There’s no limit at all to the number of traditional receivers or DVRs you can use. However, you may need to upgrade your dish to support more than 20 tuners if you have installed the most common dish.
What is a DiSEqC switch?
DiSEqC (Digital Satellite Equipment Control), pronounced “Die-Sec”, is a special communication protocol for use between a satellite receiver and a device such as a multi-dish switch or a small dish antenna rotor.
How do I know if my LNB is working?
Turn on the meter and check the signal strength. If you don’t get a reading move the dish either right or left about 3 degrees at a time to see if you can locate a signal. If you do locate a signal, even if the strength is weak, your LNB is working. If you are unable to find a signal your LNB isn’t working.
What is the purpose of a multiswitch dish?
A multiswitch is a device used with a dual or quattro LNB to distribute satellite TV signals to multiple (usually more than four) receivers from a single dish and LNB.
Do you have to use multiple multiswitch outputs?
You don’t have to use all the multiswitch outputs. Each output carries satellite plus any aerial signals that you feed into the multiswitch (from optional Freeview and/or radio aerials). You need one multiswitch output for every receiver LNB input if you want full functionality.
Do you need a multiswitch system for satellite TV?
A multiswitch system provides the simplest way to connect ALL of your satellite TV receivers if you have more than four.
How does multiswitch work on a quattro LNB?
The quattro LNB provides the signals for all four of the modes at the same time. The multiswitch then selects which of these signals to send to each receiver . For very large installations the signals from the LNB can be split and fed to more than one multiswitch.
