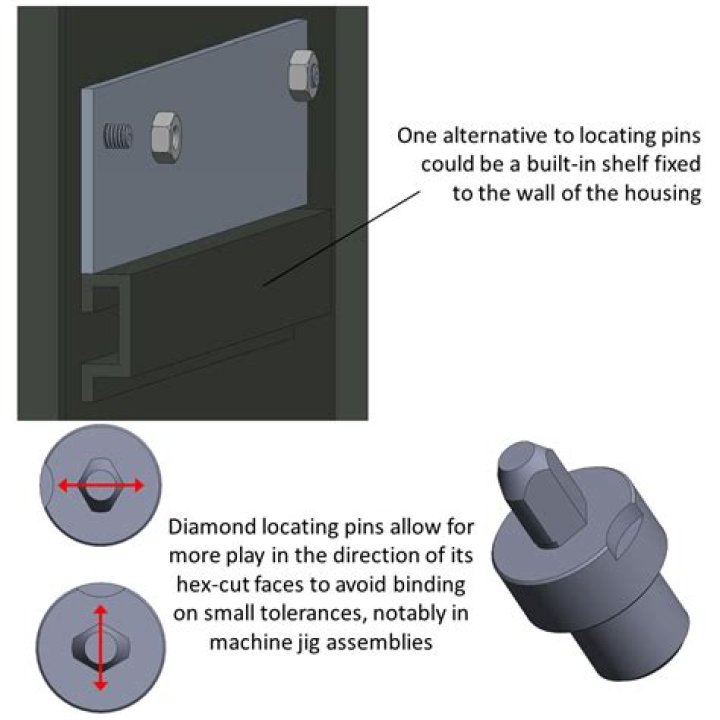

Locators. Carr Lane precision locating pins can be used to locate a workpiece on a fixture, or to align two pieces of a fixture. One round fixture locating pin and one diamond pin are often used together to locate two holes without binding, because the diamond pin is relieved to locate in only 1 axis.
What are dowel pins used for?
Hardened and precisely shaped dowel pins are used to keep machine components in accurate alignment; they are also used as location guides for adjacent machine parts and to keep the two sections of a punch and die in alignment.
How do you use a pin locator?
Drill two holes opposite each other in each part, install a cylindrical locating pin, and presto! Your parts are aligned exactly the way you want. If you are having alignment issues with using just bolts or other fasteners, a locating pin can be a great way to firm up your assembly.
How do alignment pins work?
When a dowel pin is inserted through concentric holes in two or more components, it locates and holds them together. A slight interference or transitional fit is typically used, which compresses the pin and generates significant friction to hold the pin securely in the holes.
What can I use instead of a dowel pin?
Alternatives to steel dowel pins include roll pins (slotted or spiral), grooved pins and cotter pins.
Why is a alignment pin called an alignment pin?
This in turn makes it difficult to hold the smallest SMD components. The spike and the hole force the ends of the arms to be aligned. Google suggests this answer might be correct and that it is called an “alignment pin”. – David Dec 17 ’13 at 16:53 Aside from the alignment purpose, it also allows you feedback.
Where do you put the alignment pin on a bolt?
Prior to installing the bolt, place the ejector in position with its alignment pin in a small hole through the receiver wall and hold it in its depressed position while sliding the bolt partway into the receiver. Next, mark the grips for the alignment pin.
What kind of pins are used for fasteners?
Dowel pins are simply straight solid pins that typically have chamfered ends to aid with insertion and alignment. From left to right: A steel dowel pin and a fluted wooden dowel. There are many types of pins used as fasteners. At its simplest, a dowel pin is just a solid cylinder of material, which is inserted through a hole.
How do you remove pins from alignment pins?
Pins lock in place until you release them. To insert and remove these pins, press the button, then flip the lever to release the spring-loaded retaining balls. Two-step locking prevents accidental removal. Use the key to unlock these pins, then press the button to release the spring-loaded retaining balls.
