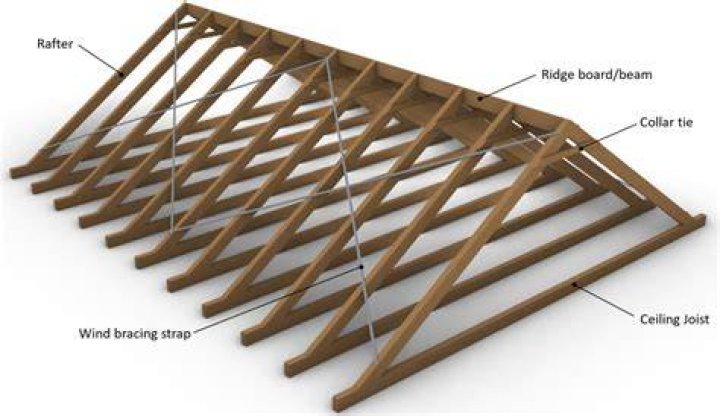

Rafters consist of sloping outer beams which provide support. As the trusses come with a web of triangles inside the main frame, they provide more support than the rafters. Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support.
What is top chord in roof?
In addition to the bottom chord and webs, the top chord is used to create the upper perimeter of the structure, or the roof. The top chord is configured to resist live loads such as those applied during construction, as well as wind loads, snow loads and others.
What is a chord in building construction?
the line segment between two points on a given curve. Engineering, Building Trades. a principal member of a truss extending from end to end, usually one of a pair of such members, more or less parallel and connected by a web composed of various compression and tension members.
What is a rafter chord?
A rafter tie forms the bottom chord of a simple triangular roof truss. When ceiling joists run perpendicular to the rafters, inspectors may find rafter ties installed above ceiling joists as framing members every 4 feet running above the ceiling joists connecting opposing rafters.
What is the function of a roof truss?
A truss is a triangular structure integrated into a roof to support a load. Aside from lending support and strength to a roof’s frame, they also bridge the space above rooms.
What is the formula of chord?
How to Find the Length of the Chord?
| Chord Length Formula Using Perpendicular Distance from the Centre | Chord Length = 2 × √(r² – d²) |
|---|---|
| Chord Length Formula Using Trigonometry | Chord Length = 2 × r × sin(c/2) |
Which type of truss is the strongest?
I think the warren-truss design will be the strongest because it is the simplest design and spreads the weight of the load evenly over the bridge. Popsicle sticks and glue were used to build 3 different bridge designs: Pratt truss, Warren truss, and K truss. 5 identical models of each design were built.
What should the bottom chord pitch of a roof truss be?
bottom chords is at least 3/12 or the bottom chord pitch is no more than half the top chord pitch. Flat–The most economical flat truss for a roof is provided when the depth of the truss in inches is approximately equal to 7% of the span in inches.
What are the chords for rooftops by Jesus Culture?
This version fixes the chords for the Intro Was this info helpful? Author izak.atak [a] 768. , last edit on Nov 06, 2020. There is no strumming pattern for this song yet.
What are the components of a roof truss?
The Basic Components of a Roof Truss 1 Apex – Highest point where the sloping top chords meet. 2 Bearing – Structural support of trusses (usually walls) normally with a timber wall plate. 3 Bottom Chords (BC) – the lowest longitudinal member of a truss. 4 Cantilever – part of structural member that extends beyond its support.
What does a runner stand for on a roof?
Runner-(binder)-continuous bracing member that runs the length of the roof to provide lateral stability for web members or the chords of trusses in conjunction with triangulated cross-bracing Scissor Truss-double pitched truss with sloping bottom chords
