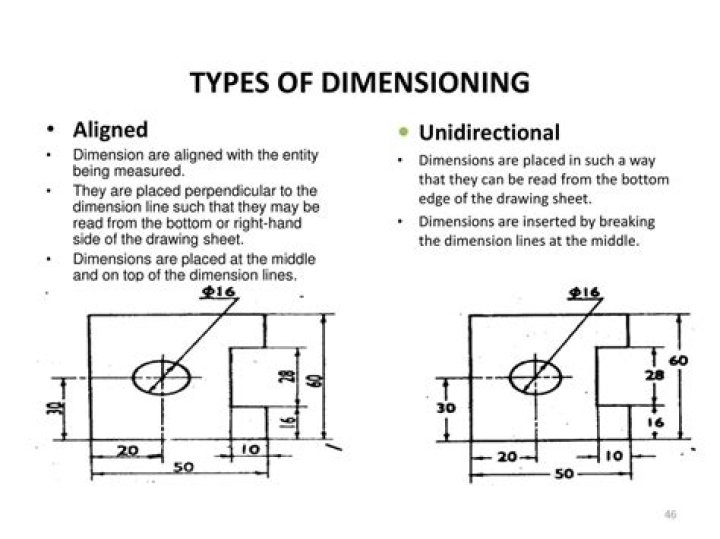

What is the difference between aligned and unidirectional system? In the aligned system, the dimension is placed perpendicular to the dimension line. In the unidirectional system, all dimensions are placed such that they can be read from the bottom of the drawing sheet.

What is the unidirectional method?

The unidirectional method means all dimensions are read in the same direction. The aligned method means the dimensions are read in alignment with the dimension lines or side of the part, some read horizontally and others read vertically.

What is an aligned dimension?

aligned dimension. A drafting symbol that runs parallel to the baseline and indicates the true distance between beginning and ending dimension points.

What are the 2 types of dimensioning?

There are two types of dimensioning systems one is Aligned system and another is Unidirectional system.

Which dimension method is recommended by BIS?

Explanation: The Indian standards Institution now Bureau of Indian Standards, in its earlier versions of Indian standard (IS: 696) ‘Code of Practice for General Engineering Drawing’ published in 1955 and revised in 1960 had recommended the use of third –angle projection method.

Where are the dimensions placed in the unidirectional system?

In the aligned system, the dimension is placed perpendicular to the dimension line. In the unidirectional system, all dimensions are placed such that they can be read from the bottom of the drawing sheet. The dimension lines are broken near the middle for inserting the dimensions.

Which is better unidirectional system or aligned system?

The unidirectional dimension system is preferred over the aligned system because it is easier to read and understand. All this is further explained here. Similarly, what is unidirectional system of dimensioning?

What are the dimensions of an aligned system?

Aligned system, ii. Break system, iii. Unidirectional system, iv. Directional system Q.28. In unidirectional system the dimensions are Q.29. In aligned system the dimensions are ______

How are dimensions inserted into a drawing sheet?

Unidirectional System In this type of dimensioning system, dimensions are placed in such a way that they can be read from the bottom edge of the drawing sheet. Dimensions are inserts by breaking the dimension lines at the middle. Dimensions must be drawn like this
